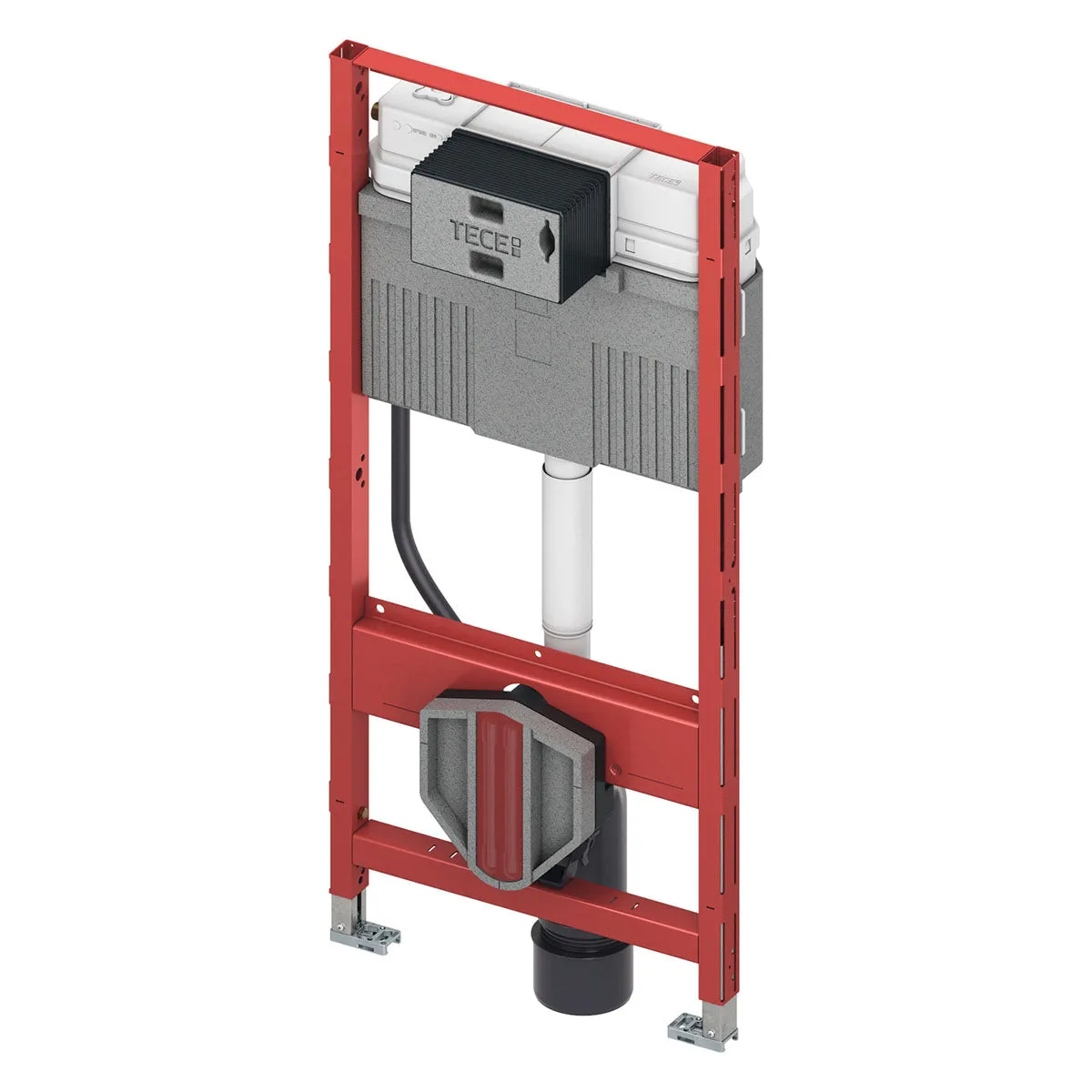

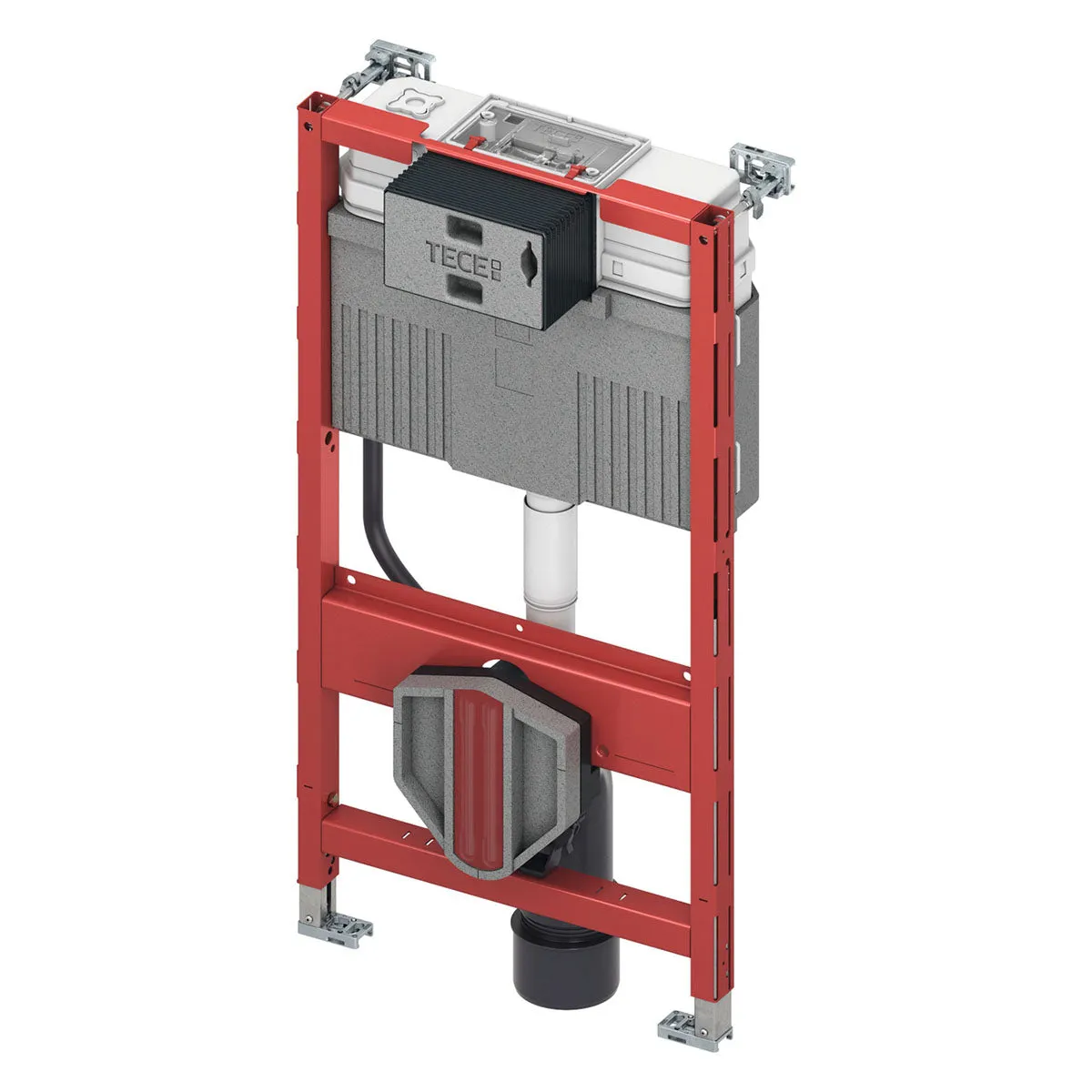

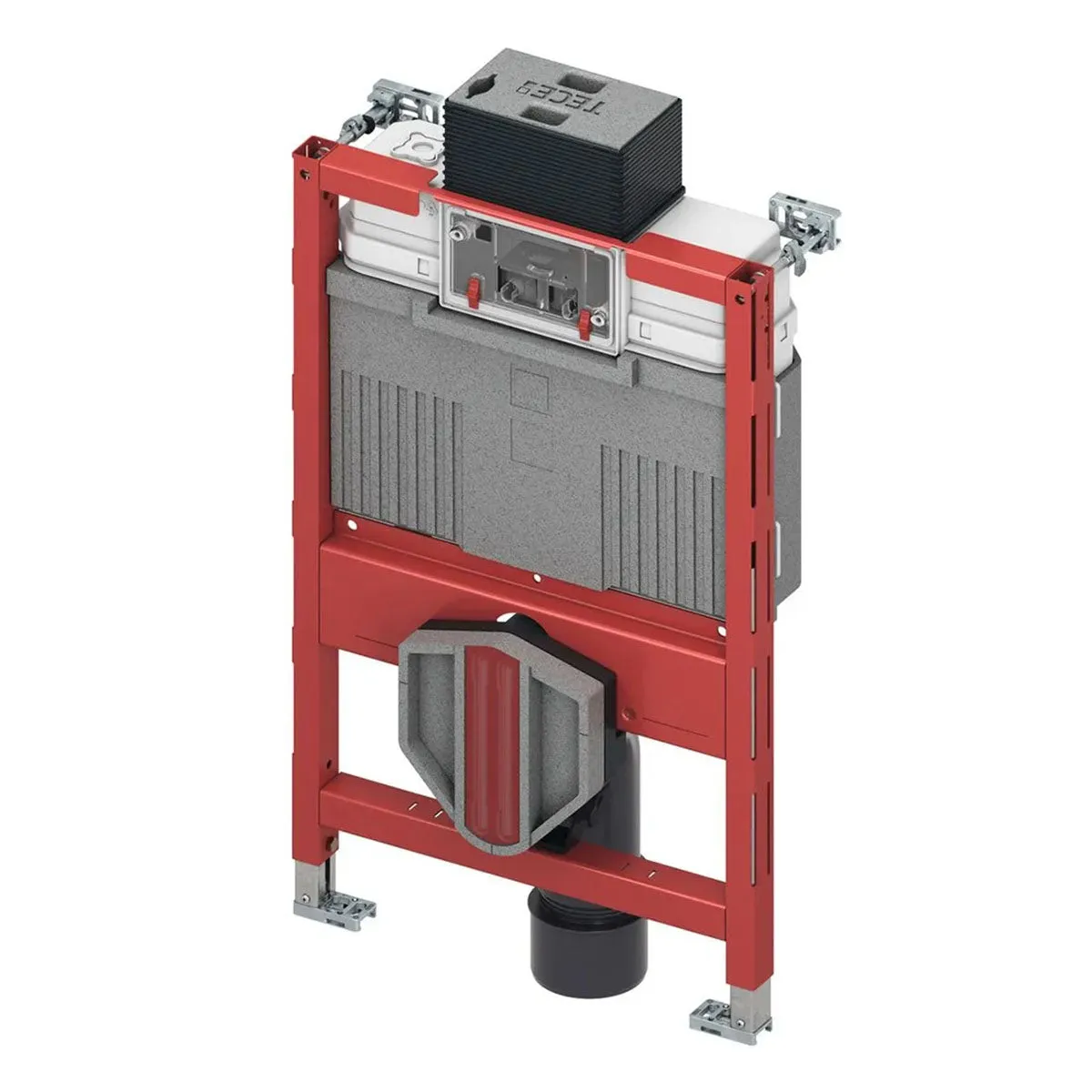

Tece Profil Toilet Support Frame For Wall Hung WC with Concealed Uni Cistern
Maximize the space in your bathroom or en-suite with the Tece toilet support frame for wall-hung WCs. Wall mounted WC's contribute to an uncluttered look, creating the illusion of a larger, more open space.
Featuring a highly durable construction, the Tece toilet support frame is available in3 heights ranging from 820mm to 1120mm, which could be ideal for installation beneath a window or in a tricky location. The cistern also features environmentally friendly dual flush technology using less water for liquid waste and more water for solid waste.
The Tece Concealed Toilet frame and Cistern is designed to stand the test of time providing you with years of dependable usage. A selection of flush function plates are also available. Sold separately.

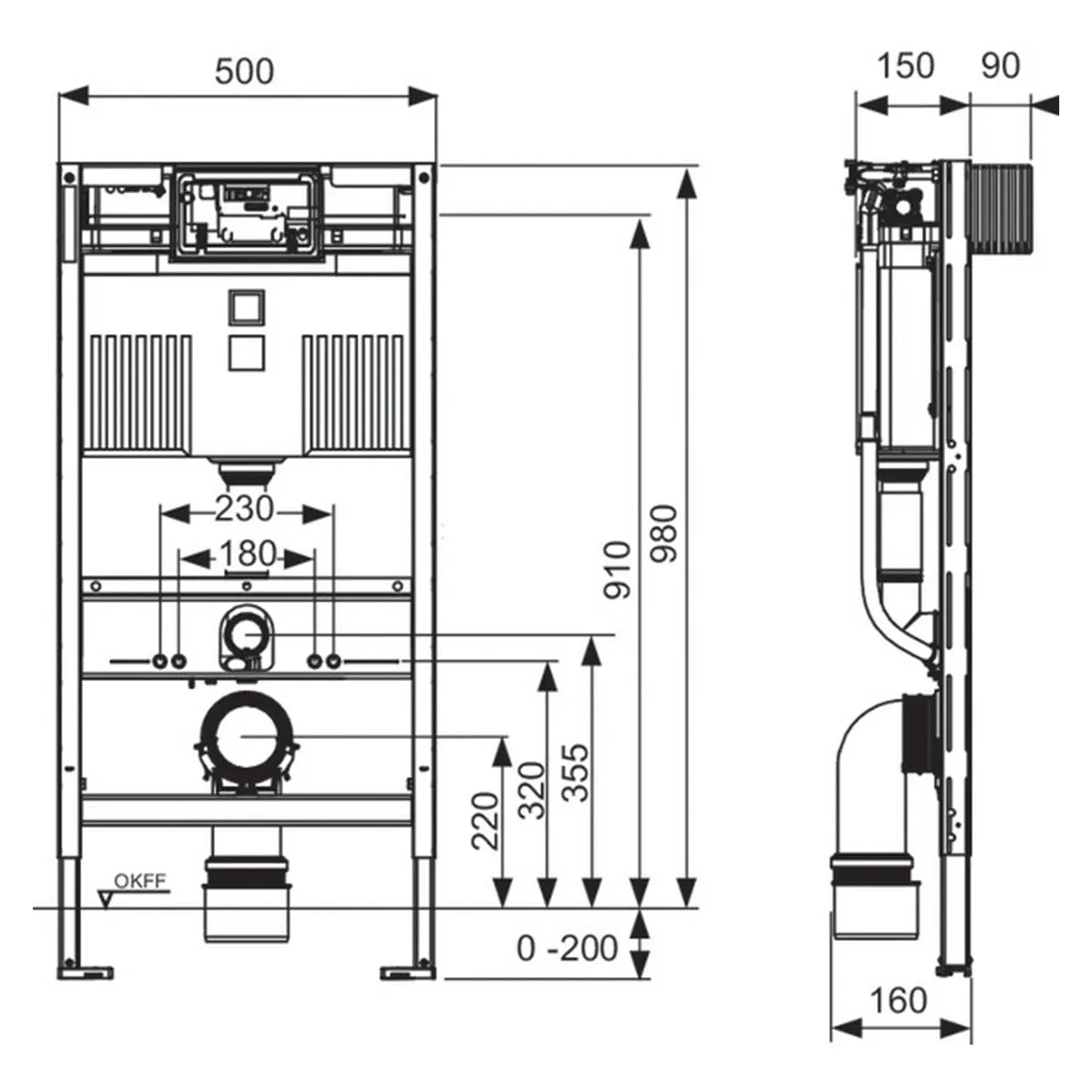

Toilet Frame Sizes

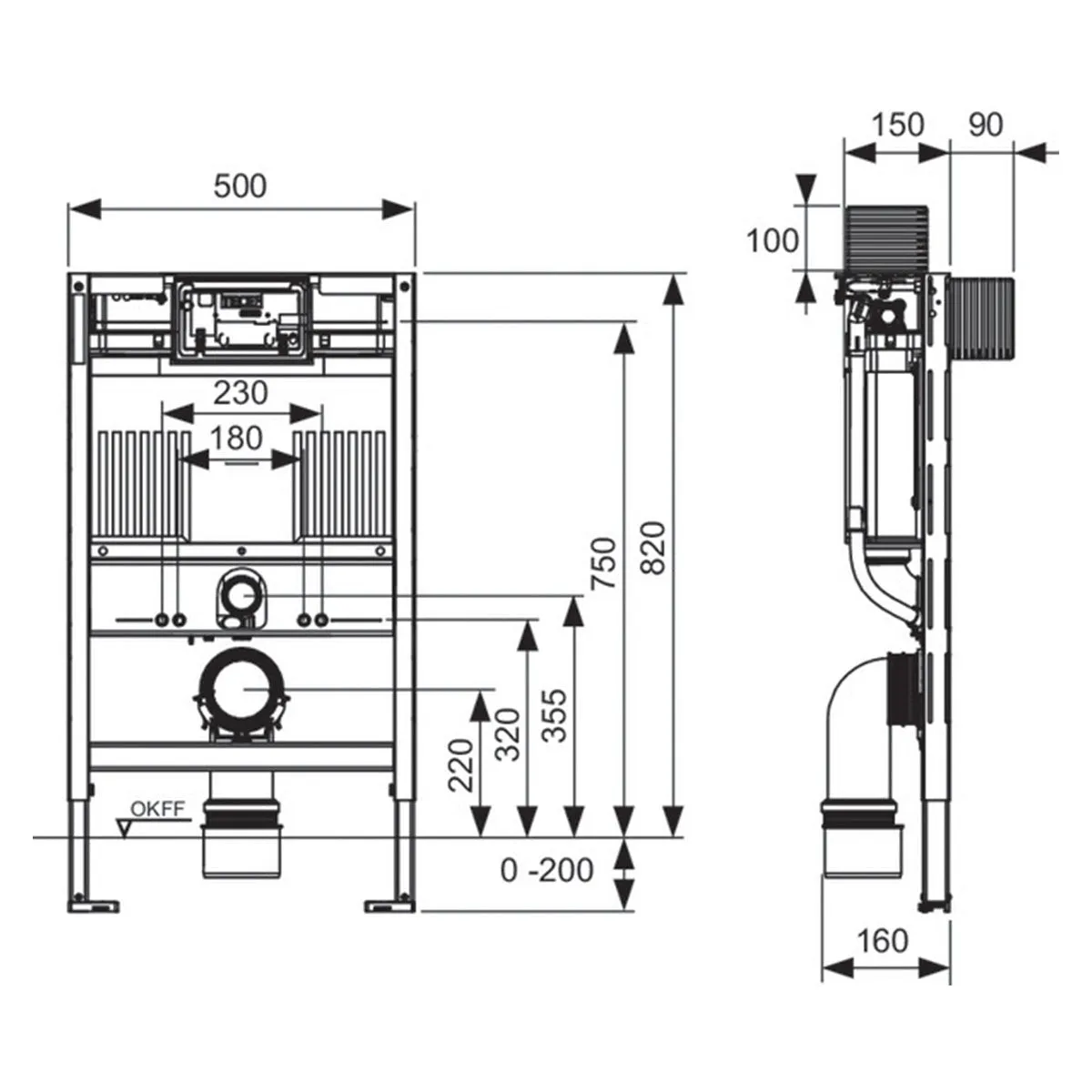

- H 820 x W 500 x D 160mm
- H 980 xW 500 x D 160mm

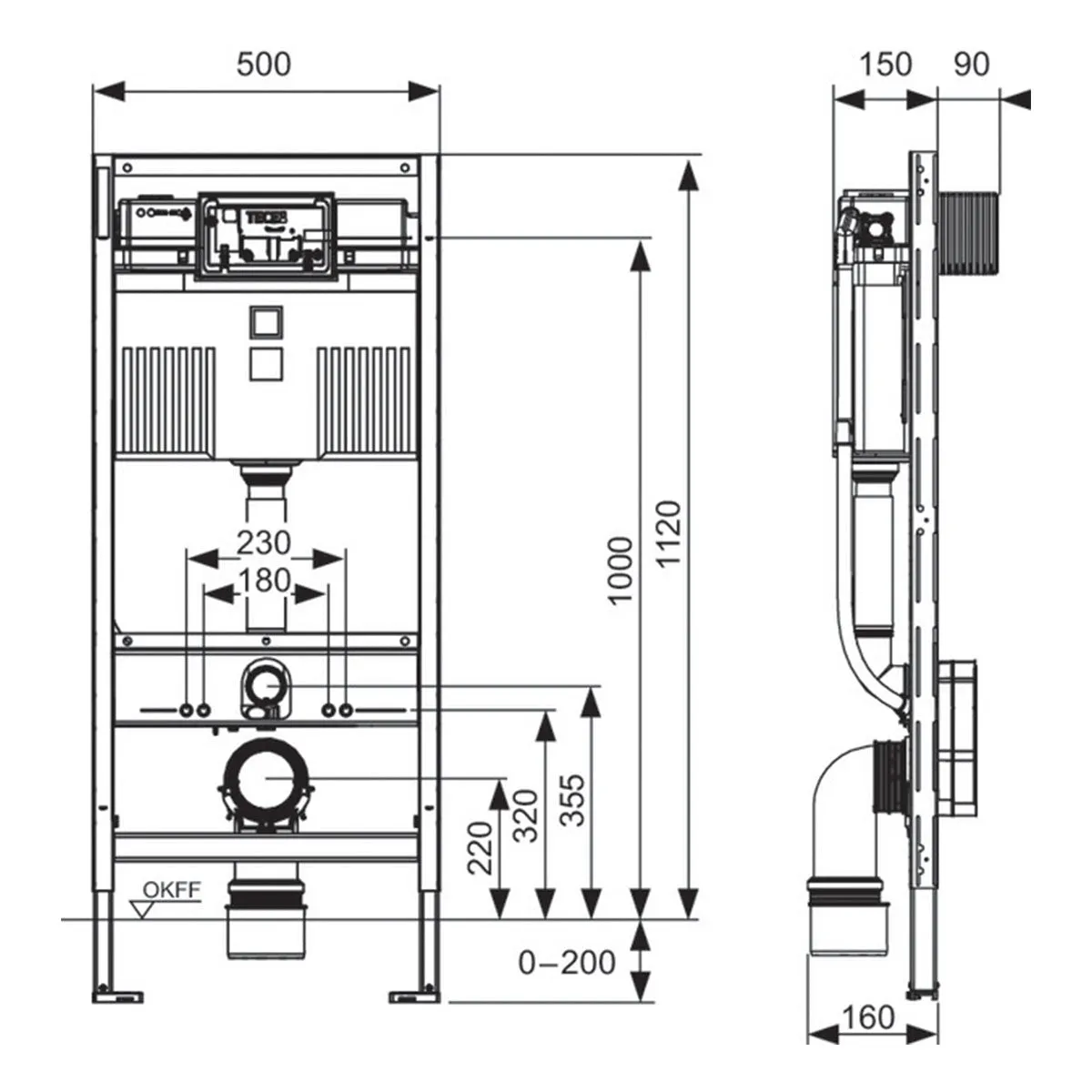

- H 1120 xW 500 x D 160mm
Toilet Frame Features
- Suits all common WC pans
- Designed & tested (DIN EN 14055) to support over 400kg
- Self-supporting, powder-coated steel construction
- 0-20cm height adjustment
- Supplied complete with all fittings for installation
- Toilet drain bend DN 90 with joint adapter DN 90/100, made of PP
- Joint adapter also suitable for horizontal installation
- Includes WC connection box including shell protection and conduit for universal shower WC connection, withjunction box and cover for transformer.
- Flush plate &toilet not included. Sold separately. See options
- 5 year manufacturer's guarantee
Cistern Features
- Low noise operation
- 10-litre tank capacity

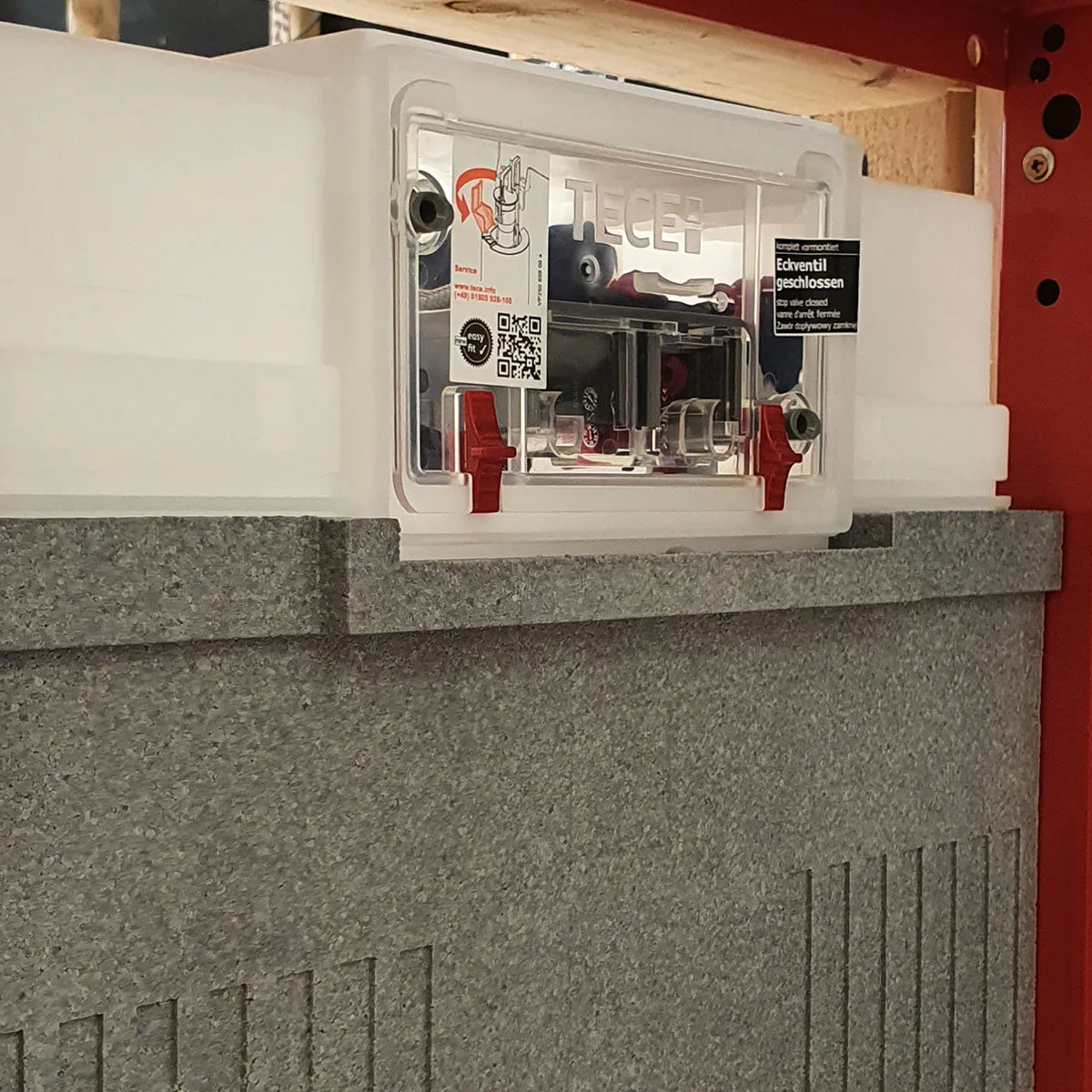

- Easy to maintain - simply remove the flush plate to gain access
- Cistern can be operated from the front or top (1120mm top only)
- Safety tank made of impact-resistant plastic, tested to EN 14055
- Fully pre-assembled and sealed
- Connection with outer thread R 1/2" at the side, compatible with quick adapters
- Dual flush technology (6 litres standard flush / 3 litres partial flush)*
- Insulated against condensation water
- Easy fit flush plate installation
- For TECE flush plates and toilet flush handle
- Can be used as a single or dual-flush cistern
- Installation tunnel for service opening can be shortened without tools
- Low-noise hydraulic filling valve, fitting group 1 according to DIN4109
- 5 year manufacturer's guarantee
Additional Information
- *10 litre tank volume; 6 litre pre-set standard flush volume, 4.5/7.5/9-litre flush volume can be set at any time; 3-litre partial flush volume for dual-flush system; remaining volume can be used for immediate cleaning flush.
- Images used are for illustration purposes only
