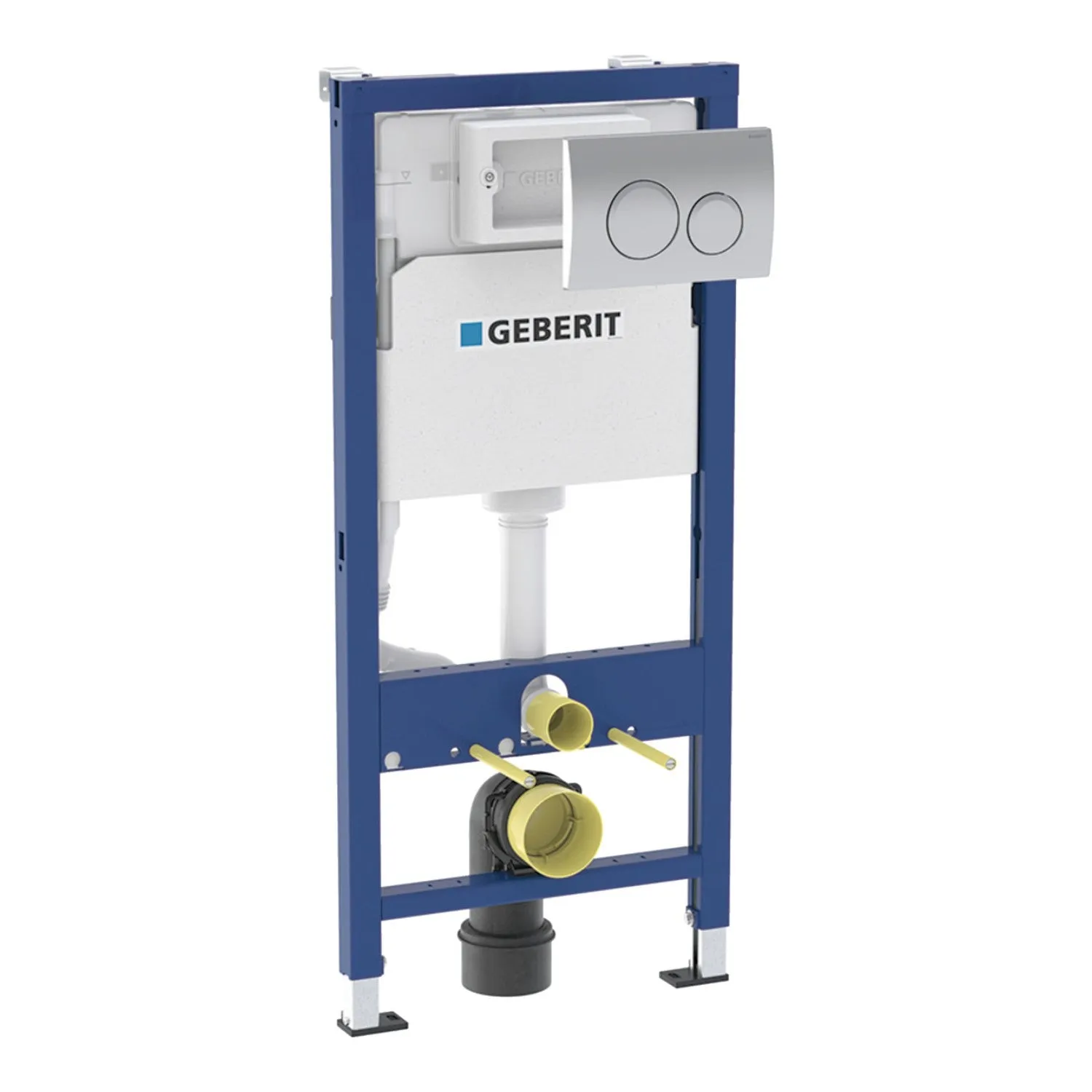

Geberit Delta Duofix 1120mm Frame For Wall-Hung WC With Concealed Cistern and Chrome Flush Plate

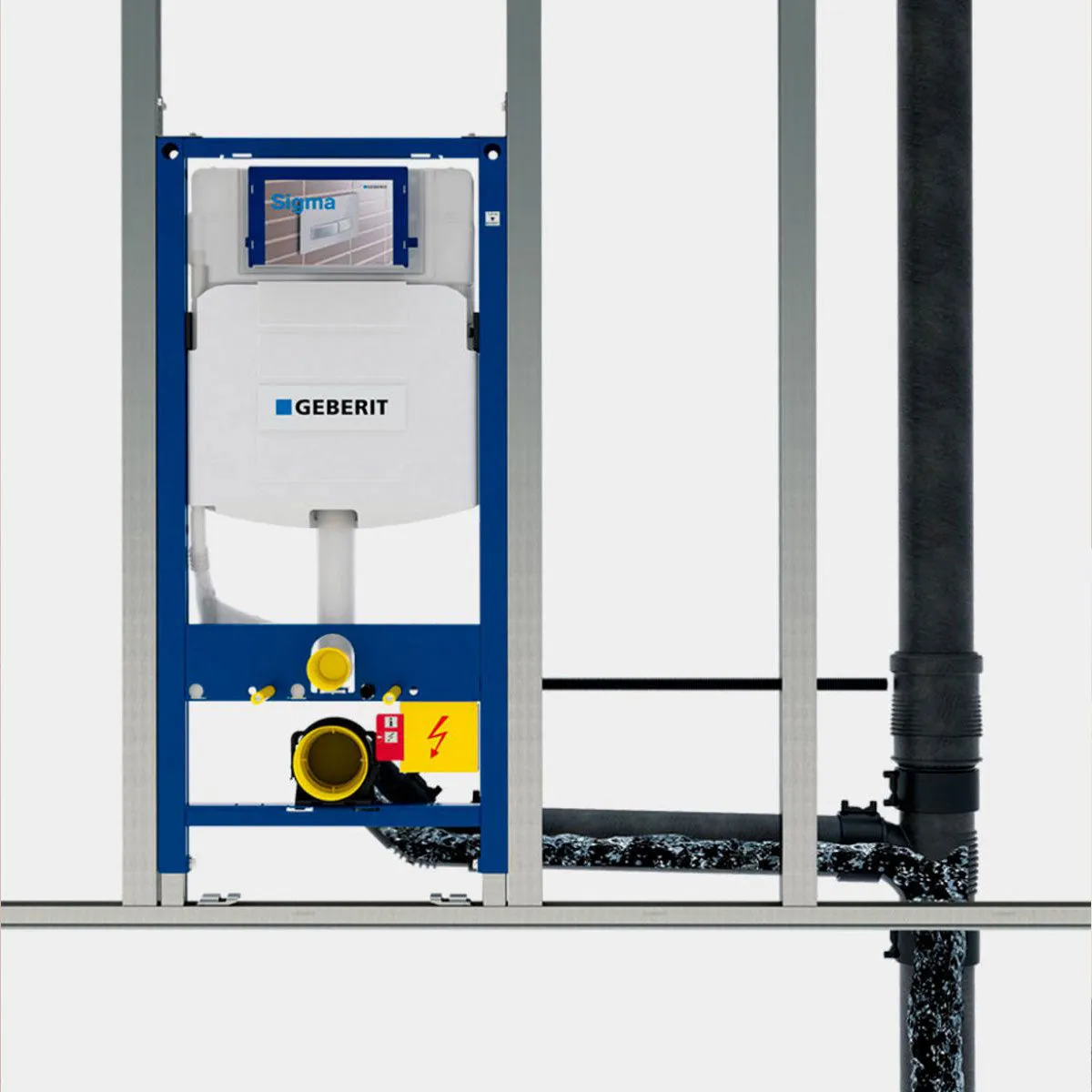

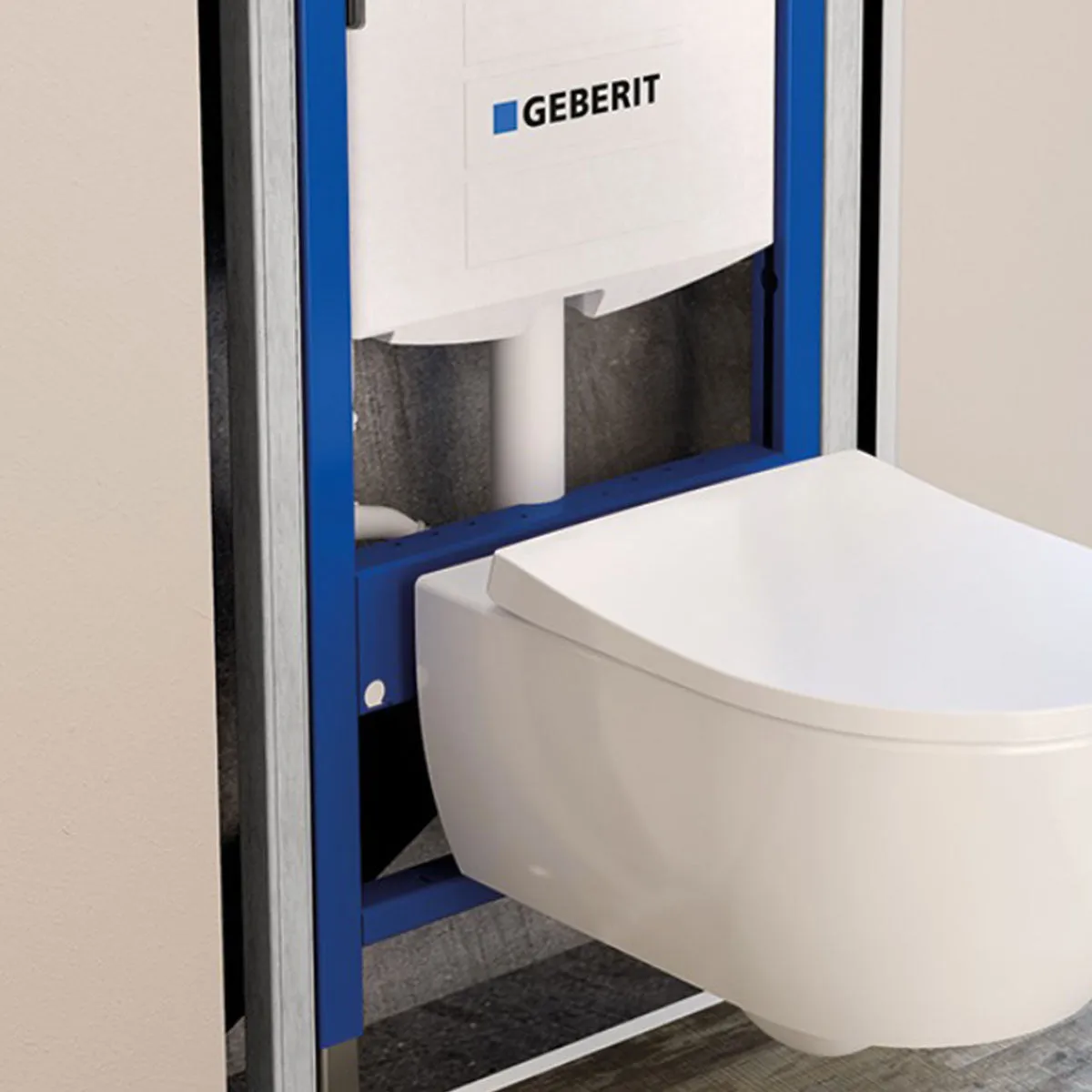

Add a touch of durability to your bathroom with the Geberit Duofix Frame with Dual Flush Concealed Cistern.The toilet frame has galvanized andadjustable feet, making it easily adaptable to your bathroom.Theframe and cistern offers maximum support for your wall-hung toilet, and comes complete with the Delta Gloss Chrome Dual Flush Plate, to complete the look in your bathroom. The concealed cistern is fully insulated against condensation.

Geberit Frame Features

• Size: D 120 x W500 x H 1120mm
• Height of 112cm, adjustable from 0 to 20cm
• Self-supporting frame, powder-coated
• Frame with a diameter of 9 mm drilling holes for fastening in wood frame construction
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Galvanized feet
• Non-slip leg supports
• Rotatable foot plates
• Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
• Connection bend can be mounted without tools at different depths, adjustable range 45 mm
• Fastening for connection bend, sound-absorbing
• Concealed cistern with top or front actuation
• Concealed cistern fully insulated against condensation
• Cistern fulfills standard requirements in accordance with EN 14055, Class II
• Immediate post flush possible with factory setting
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection on the left or rear left
• Protection cover box for service opening protects against moisture and dirt
• Protection box for service opening can be cut to length
• Equipped with conduit pipe
• 10 year manufacturer's guarantee

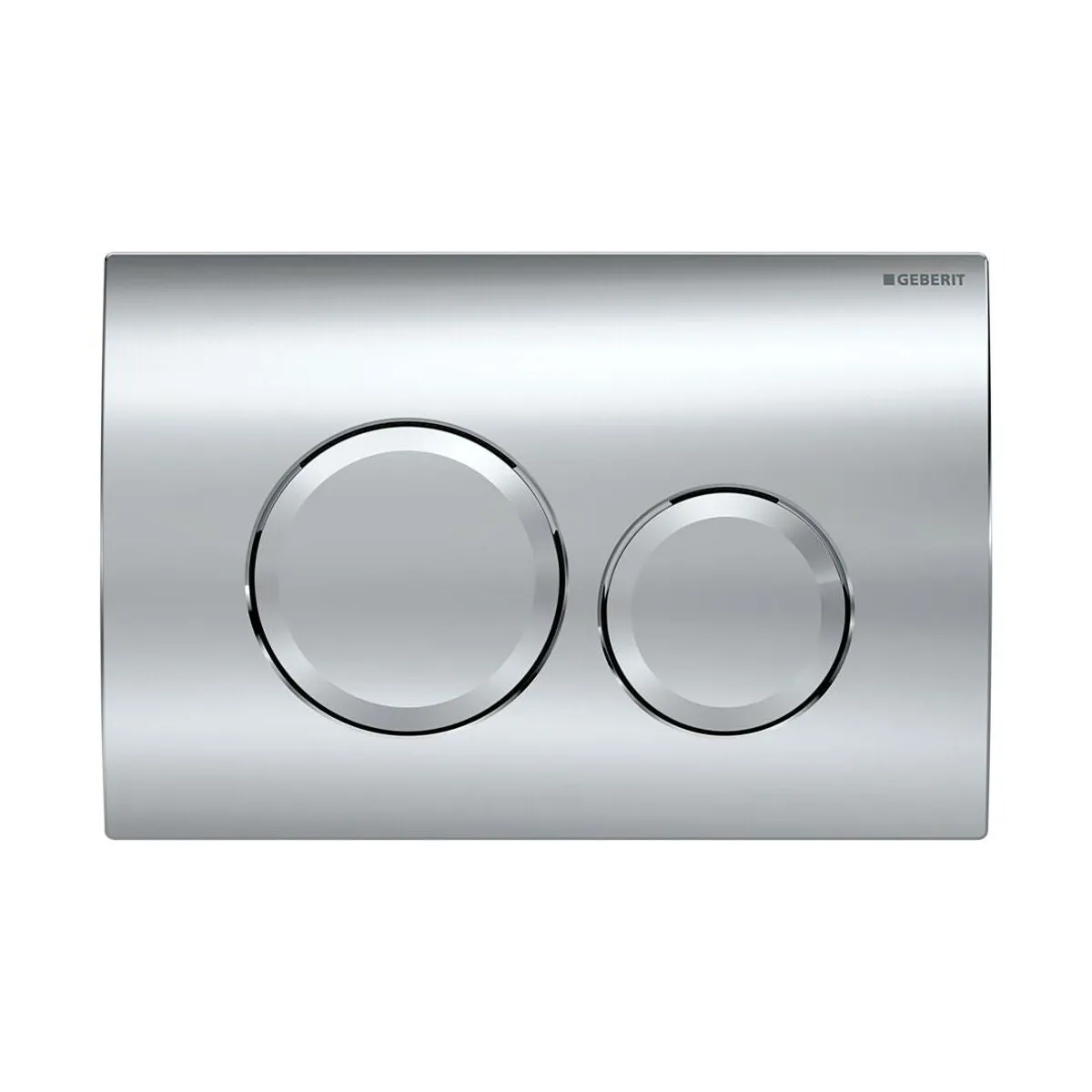

Delta20 Flush Plate Features

• Dual flush plate with front actuation
• Dimensions: 246 x 164mm
• Mounting frame
